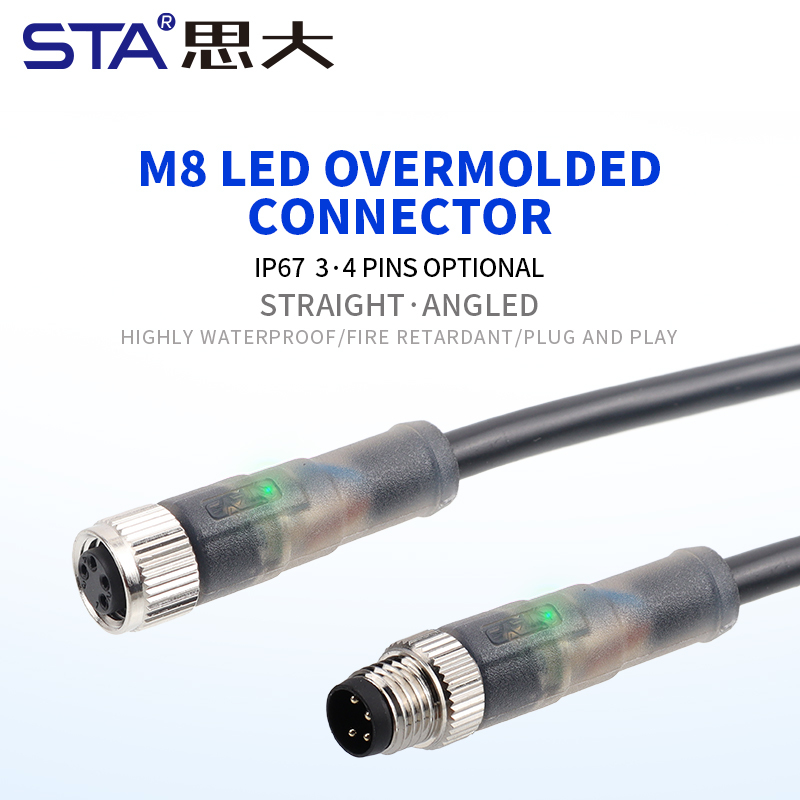

The STA M8 LED Overmolded Connector is a high-performance connector designed for industrial and electronic applications requiring reliable power and signal transmission. Available in 3 and 4 pins, it comes in straight or angled female versions and features built-in LED lights for visual status indication. Constructed with brass nickel-plated or gold-plated contacts, epoxy/rubber sealing, and TPU/PVC molding, it offers excellent waterproofing and fire-retardant properties. Compliant with IEC 61076-2-101, this connector supports 3A rated voltage, 24AWG conductor size, and customizable lengths, ensuring stable, low-resistance connections for LED PCB boards and other electronic systems.

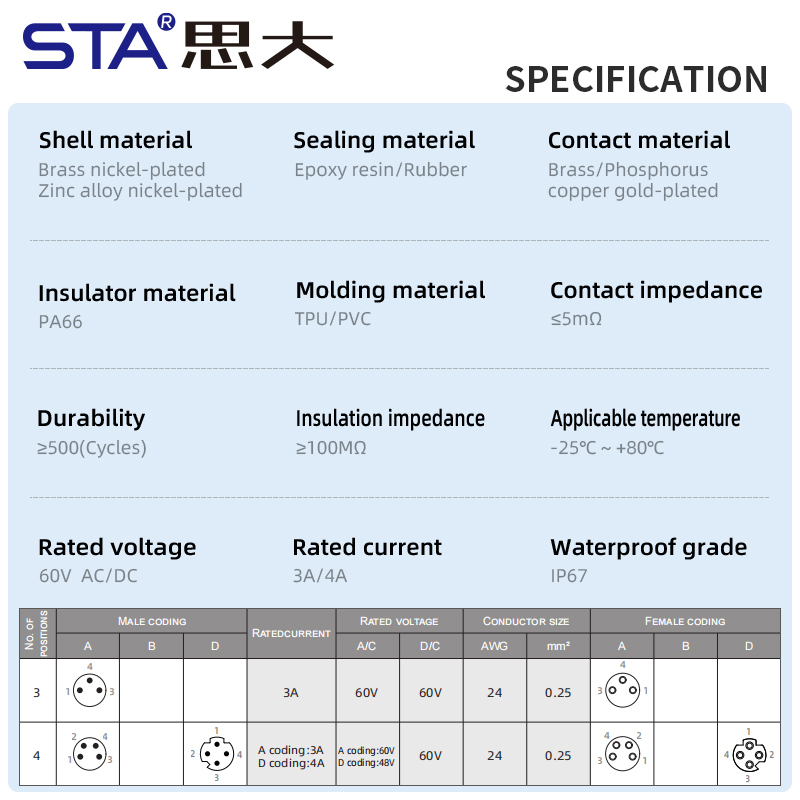

Connector Type
M8 LED Overmolded Connector
Cable Outlet
Straight / Right Angled
Pin Count
3 / 4 / 5 / 6 / 8 pins
Gender
Male / Female
Cable Type
PVC / PU / TF / PE (optional)
Rated Voltage
1–3A (depending on pin count)
Contact Resistance
≤10mΩ
Insulation Resistance
≥100MΩ
Temperature Range
-25°C ~ +85°C
Insulator Material
PA66
Socket
Front Mount Solder Type, Back Mount Solder Type and PCB board type
Shell Material
Brass nickel-plated / Zinc alloy nickel-plated
Contact Material
Brass / Phosphorus copper gold-plated
$0.00
M5 Overmolded Plug:

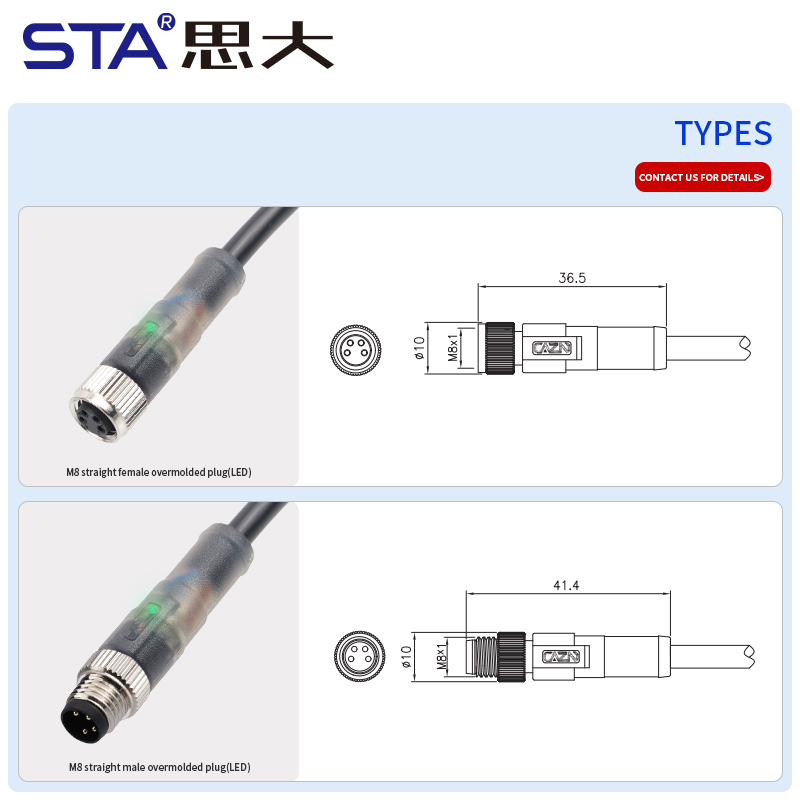

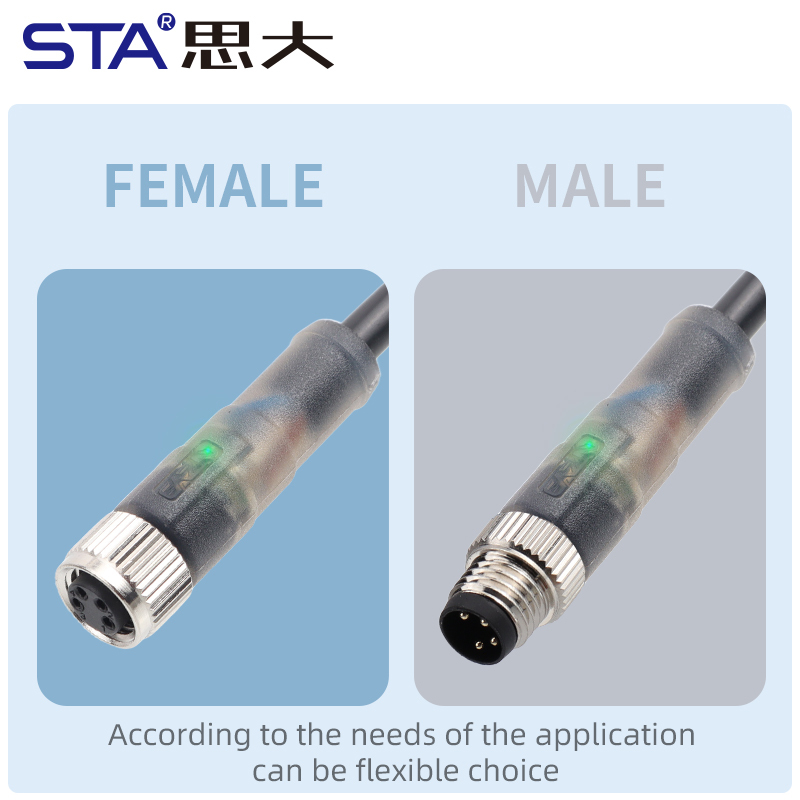

M8 straight male overmolded plug (LED)
M8 straight Female overmolded plug (LED)
M8 straight male overmolded plug (LED) With Wire
M8 straight Female overmolded plug (LED) with Wire

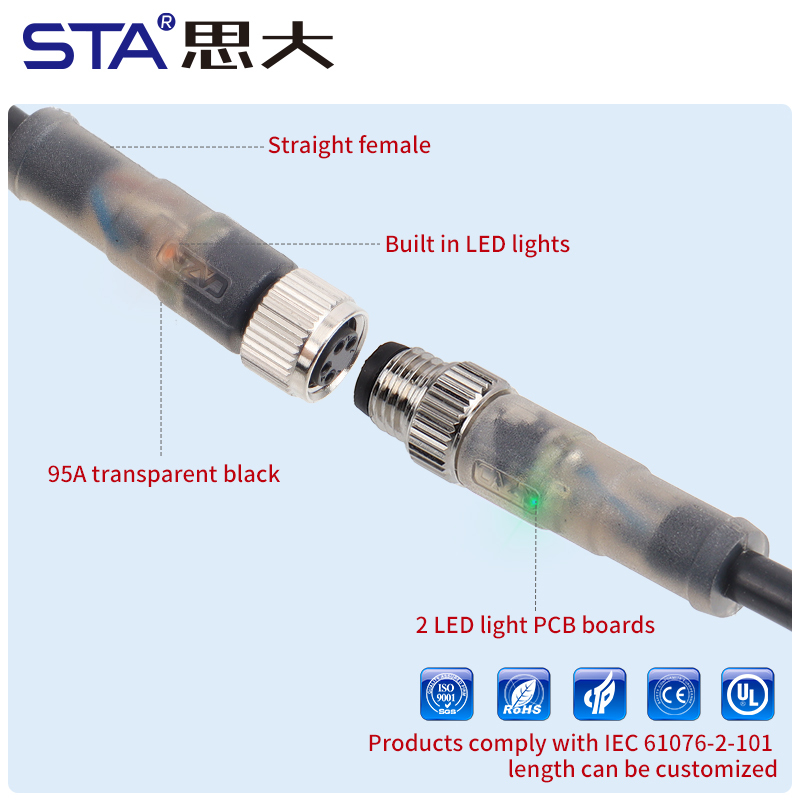

Integrated LED lights provide visual feedback for power and signal status, improving system monitoring and reducing troubleshooting time.
High-Quality Materials
Brass nickel-plated or gold-plated contacts, TPU/PVC molding, epoxy/rubber sealing, and PA66 insulator ensure long-term durability, corrosion resistance, and fire safety.
Waterproof and Fire-Retardant
IP67 rating and fire-retardant materials make the connector suitable for harsh environments, including outdoor installations and industrial machinery.
Low Resistance and Stable Transmission
5mΩ contact impedance and 3A rated voltage guarantee stable power and signal transmission for LED PCB boards and other electronic systems.
Customizable Lengths and Compact Design

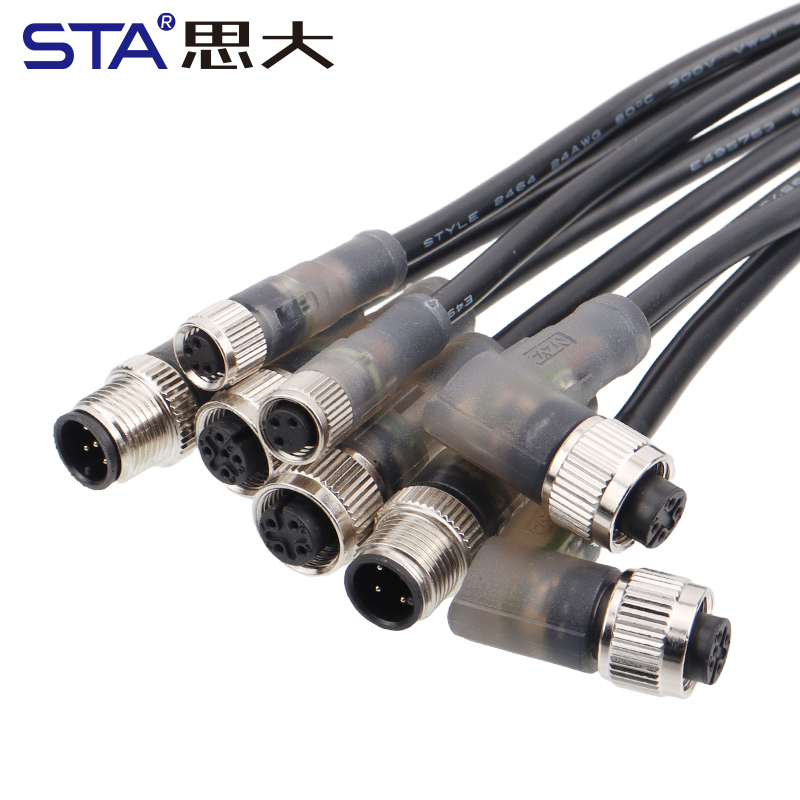

Available in straight or angled designs with customizable cable lengths, allowing flexible integration into various industrial and electronic applications.
Product Use
LED Display Boards
Provides reliable power and signal connection with visual LED status indicators for PCB boards.
Industrial Automation
Suitable for industrial machines requiring waterproof, fire-retardant connectors with compact design.
Outdoor Electronic Equipment
IP67 waterproof rating ensures reliable operation in harsh outdoor conditions.
Robotics and Control Systems
Supports stable signal transmission in robotic systems and automated control circuits.
Custom Electronic Solutions
Flexible straight or angled design and customizable length allow seamless integration into various electronic applications.
